Pallet Rack Security Cage Systems: Enclosures & RackBack Panels

A pallet rack security cage system uses the rack you already own as the frame of a security cage. Instead of building a separate wire partition room and moving inventory into it, wire mesh panels and doors bolt straight to the rack uprights and beams. Facilities usually need one of two things:

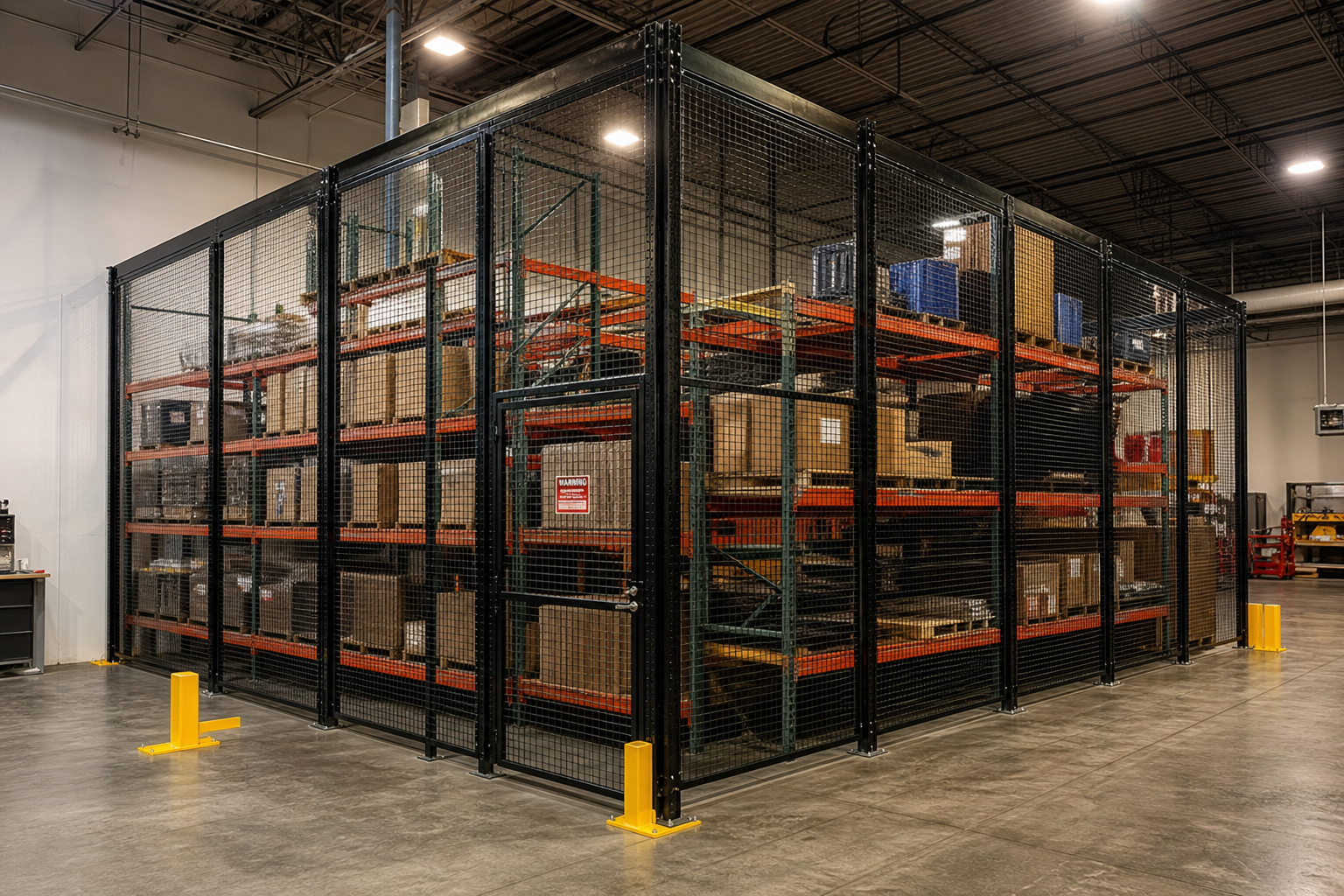

• A pallet rack enclosure — mesh on the back, ends and top with lockable doors on the front, so high-value stock on the rack is locked away from everyone but authorized staff.
• Pallet rack backing — mesh panels on the back of the rack only, so cartons and pallets cannot be pushed off the far side into a pick aisle or walkway. That is a safety barrier, not a locked space.

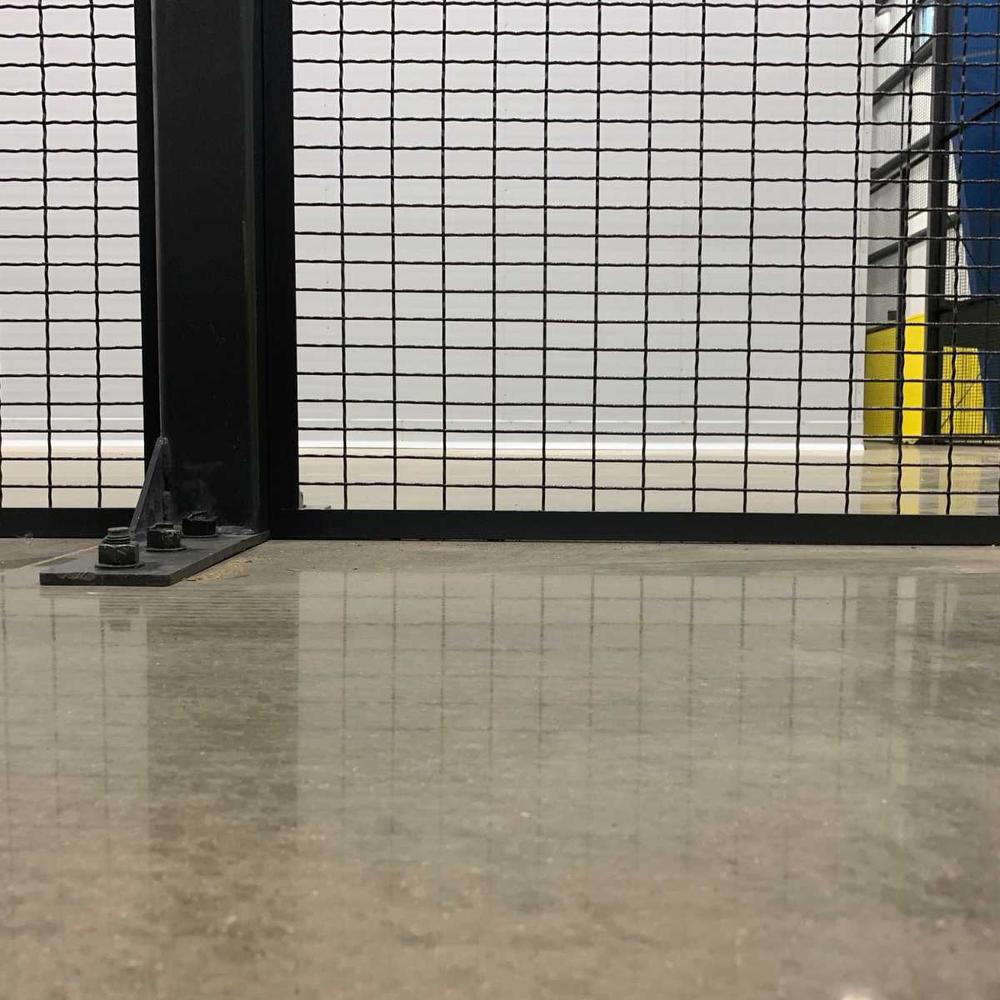

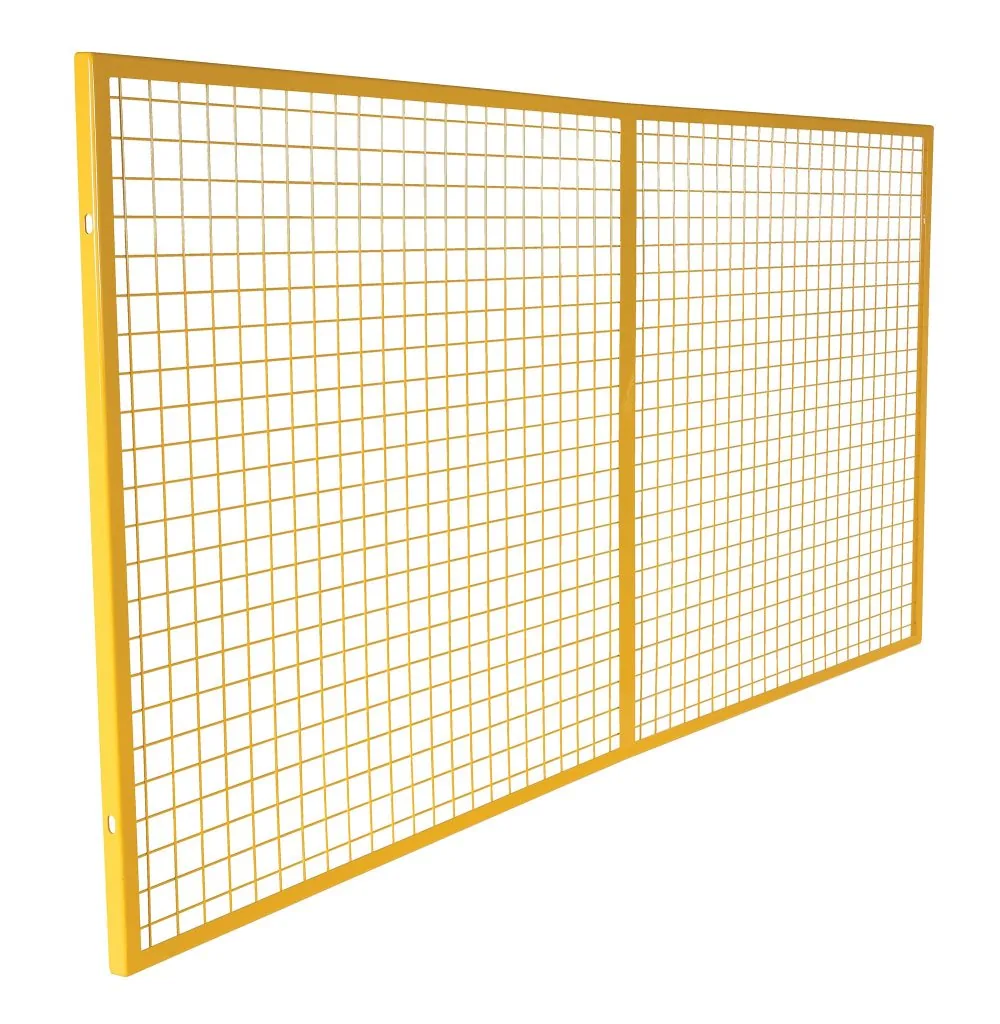

Both use the same 2 in. square, 10 gauge welded mesh in a steel angle frame, so a facility can start with backing and add end panels and doors later on the bays that need locking.

Doors are what turn a guarded rack into a locked one. Wire Crafters builds two types that bolt to the rack uprights with hand tools:

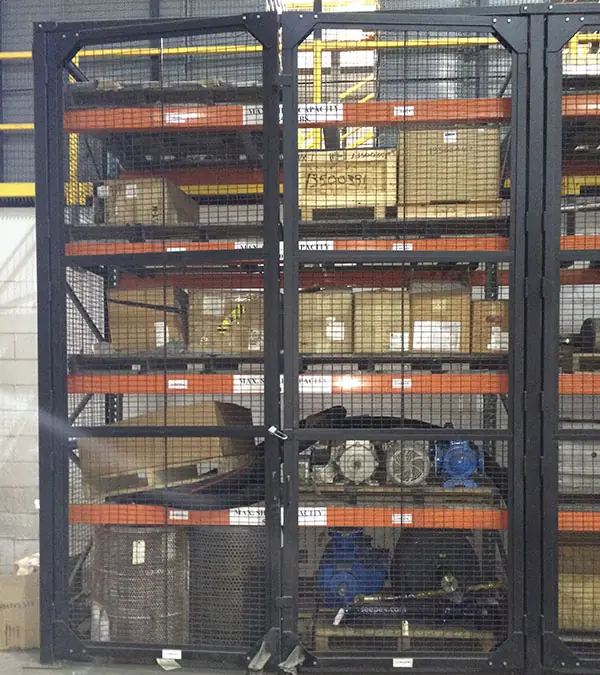

• Double hinged doors — standard 8 ft wide in 8 ft and 10 ft heights, with a padlock lug; made up to 12 ft wide x 20 ft high, with their own door posts on oversized doors

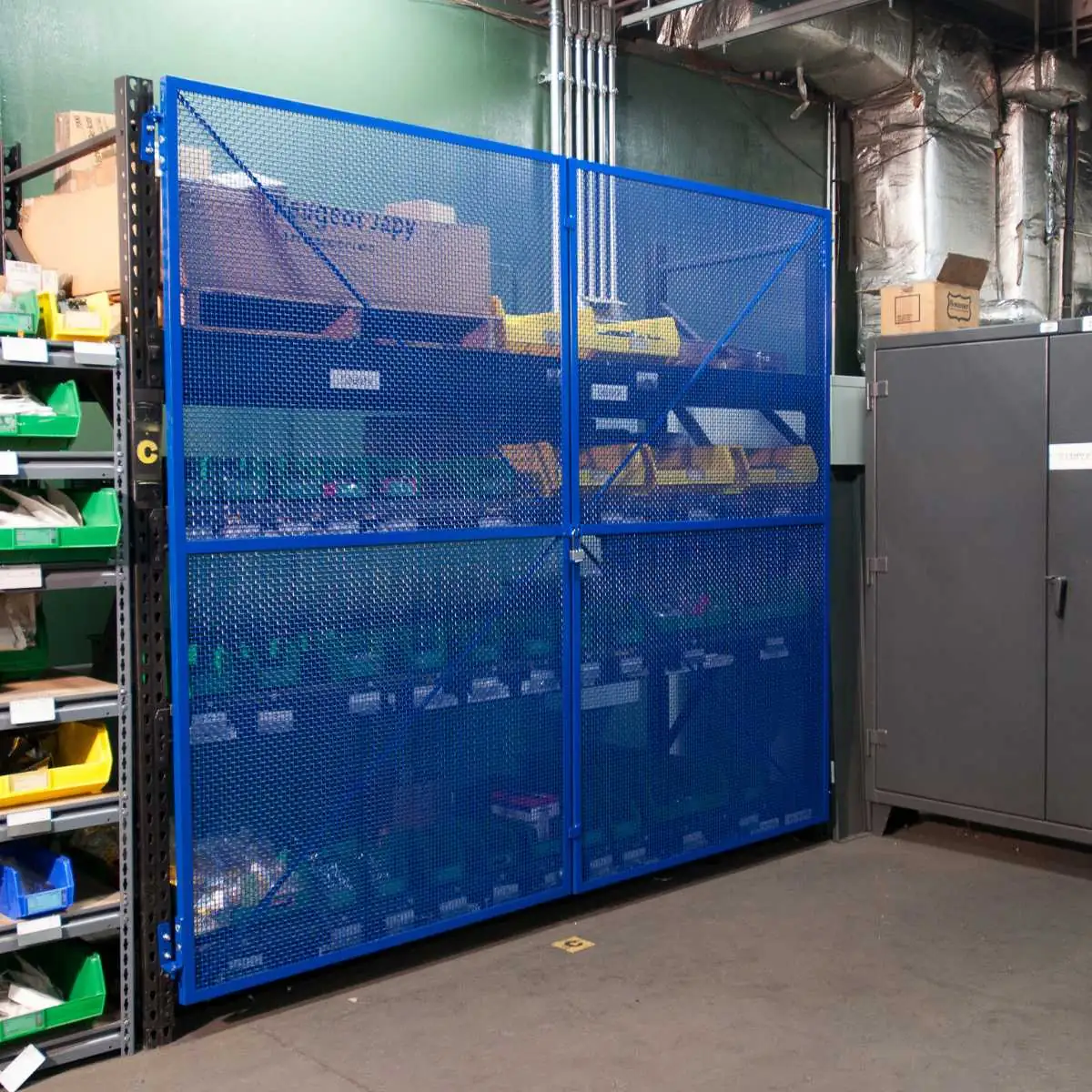

• Sliding doors — the most popular choice, sized from 8 ft x 8 ft up to 12 ft x 20 ft; on side-by-side bays they run on a double track so one door slides in front of the next

Sliding doors use almost no aisle space, which matters in narrow aisles where a hinged leaf would block forklift traffic. Hinged doors give a full-width opening when the bay is loaded by forklift.

Locks start with a padlock lug. Keyed partition locks, keypads and card readers are covered on our security cage locks and access control page, and the full range of cage door styles is on security cage doors. When a rack enclosure becomes the only way into a room, ask about exit hardware so nobody can be locked inside.
