Evidence Cages and Evidence Storage Enclosures
Wire mesh evidence cages for police property rooms, sheriff’s offices, crime labs and courts: locked, see-through enclosures that section off high-risk evidence and keep every item in plain sight.
Supplied and installed nationwide from Salt Lake City — call (800) 326-4403.
1 ft to 10 ft
Standard panel widths
4 ft or 5 ft
Stackable panel heights
10 ga
Woven 2 in. x 1 in. mesh
Inside-only
Assembly hardware
Shop Pre-Configured Wire Mesh Cage Kits Online

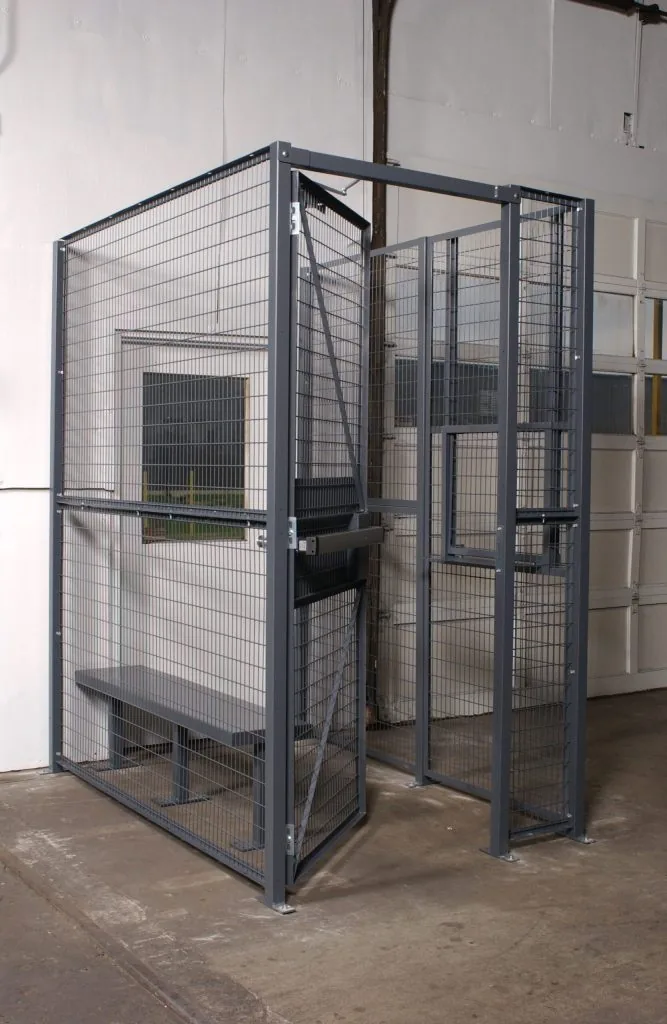

Standard-size welded wire cage kits, priced online, for a small evidence or property cage. Every kit still needs to be anchored to sound concrete — for tall, braced or engineered enclosures, request a quote with your building location and floor details.
Prices are the current online prices. See all security cage kits · Need a custom size? Request a security cage quote.

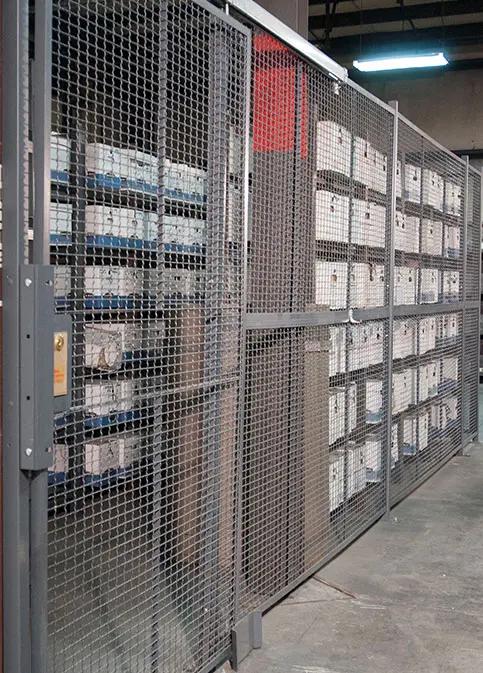

What is an evidence cage?
An evidence cage is a locked wire mesh enclosure inside an evidence or property room. It adds a second barrier around the items that need the most control — firearms, narcotics, cash, jewelry — so that even staff with access to the main room cannot reach them without a separate key, card or code. Every entry is one more step you can log for chain of custody.
Because the walls are mesh, evidence stays visible to supervisors and cameras, and the room’s lighting, HVAC and fire sprinklers keep working inside the cage. It is the same construction as a wire mesh security cage, laid out for property-room workflow.

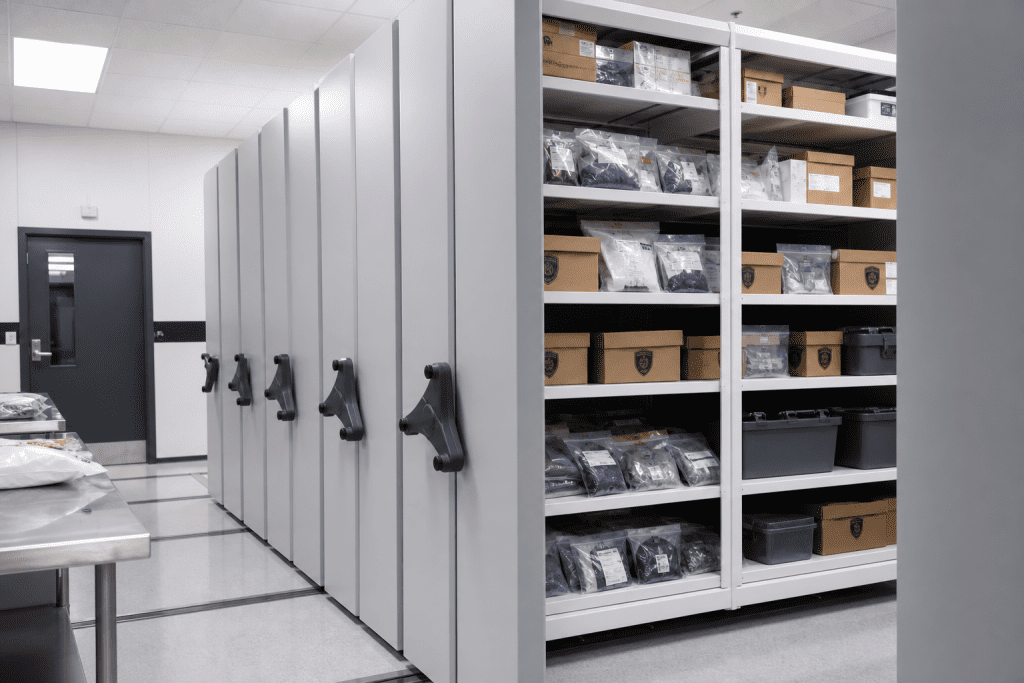

For shelving, lockers and room planning beyond the cage, see evidence storage solutions, the comprehensive guide to evidence storage and evidence storage room design. Procedures are covered in evidence storage best practices.

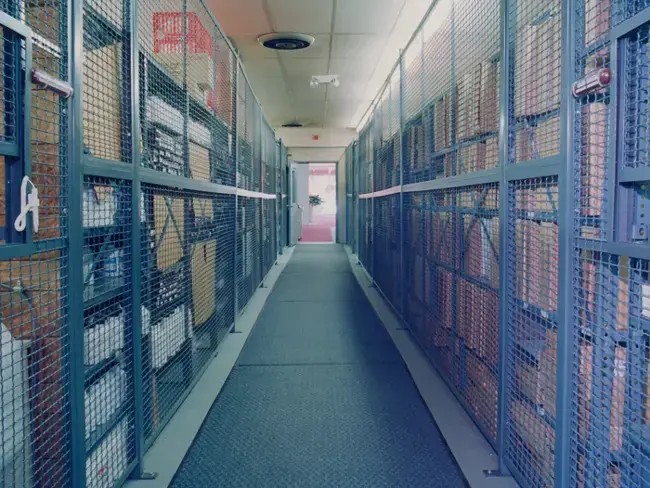

Evidence cage configurations
Wire Crafters’ Style 840 system — the most common evidence enclosure we quote — can be laid out several ways, as published by the manufacturer:
- Room divider — mesh panels bolted between two existing walls to split one room into public and secure sides
- Corner cage — two mesh walls bolted together, using two building walls for the rest
- Self-contained enclosure — four mesh walls, with optional mesh ceiling, anywhere on the floor
- Issue window — a slide-up service window with a fixed counter for handing items in and out without opening the door
Panels come in one-foot increments from 1 ft to 10 ft wide and in 4 ft and 5 ft heights that stack to wall height, so the cage can be fit to rooms of any size.

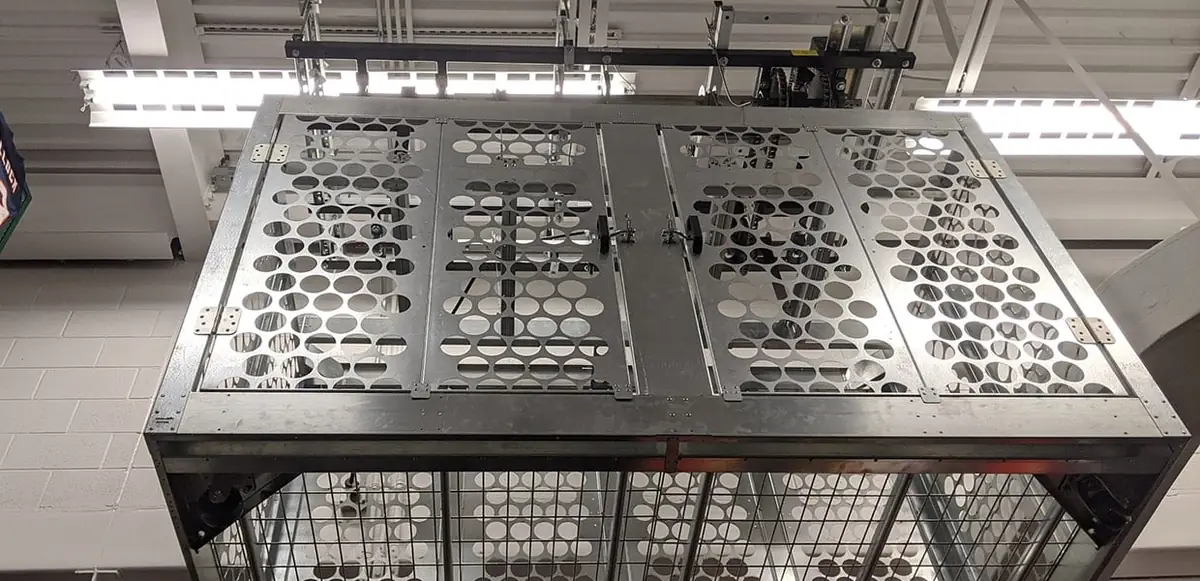

Service windows are covered on the security cage service windows page; ceilings on security cage ceilings.

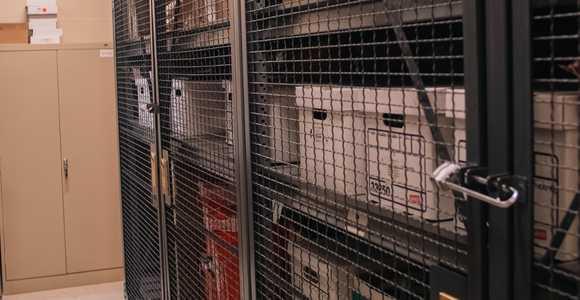

Wire mesh evidence lockers

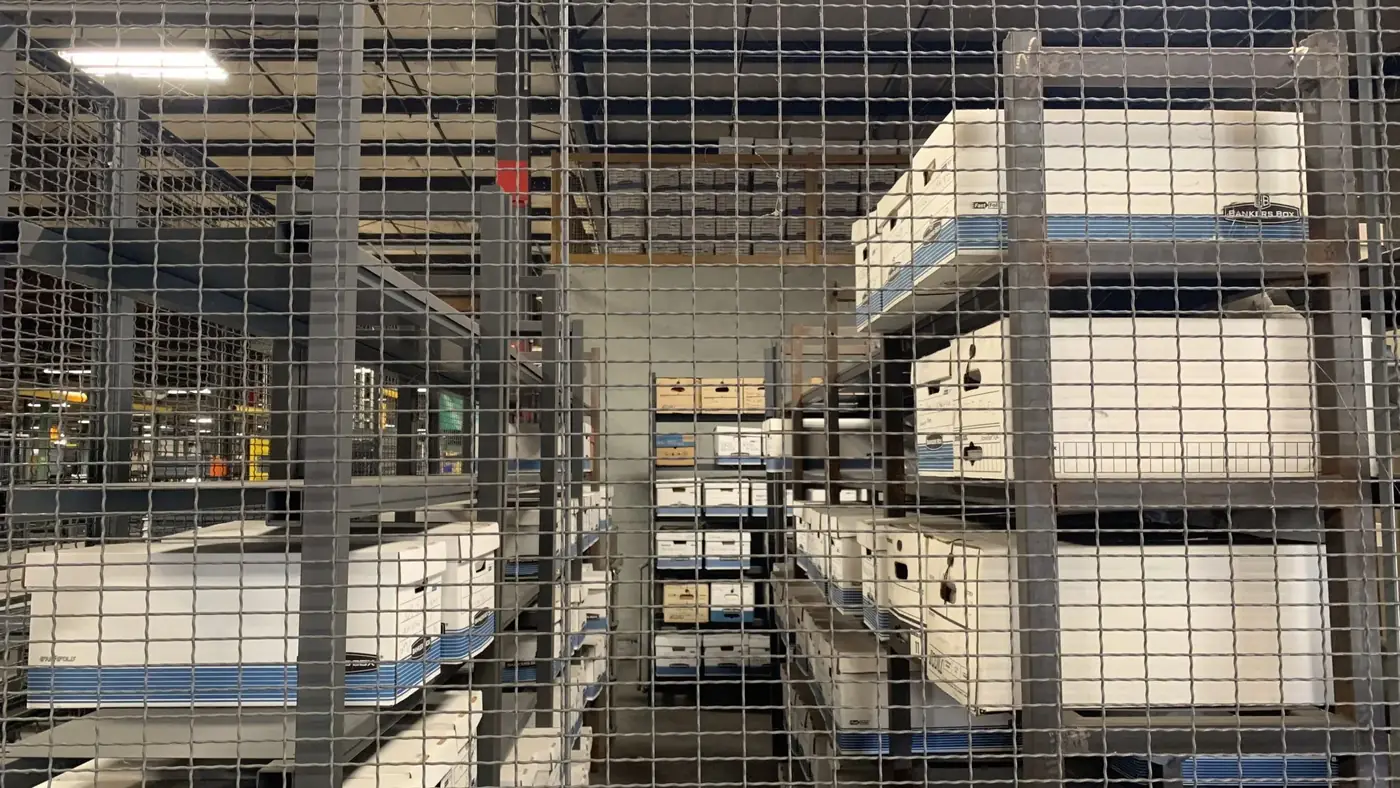

For smaller items or case-by-case separation, wire partition evidence lockers sit inside or alongside the cage. Wire Crafters lists lockers 3 ft x 3 ft x 7 ft 6 in. high that can be fitted with shelves and come with a padlock lug for your padlock. Multiple lockers share common side walls, and back and ceiling panels are added as needed.
Pass-through and refrigerated evidence lockers are a different product — see evidence storage solutions. For general cage lockers, see wire mesh lockers.
Doors, hardware and access control

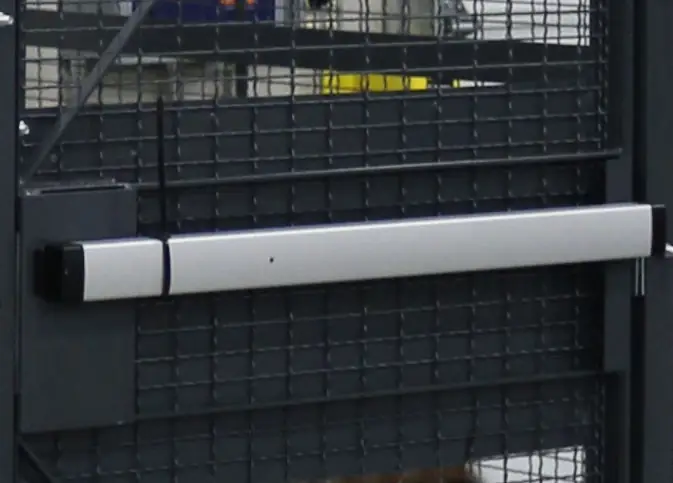

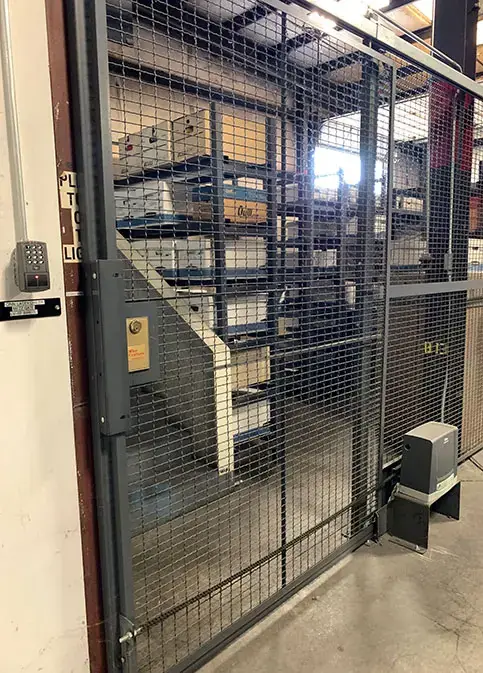

Hinged, double hinged, sliding and vertical rise doors are available; Wire Crafters’ sliding doors use a patented tamper-resistant latch. Standard doors have a built-in key lock, with digital keypads, card and proximity readers and biometric fingerprint readers available when you need an audit trail of who opened the cage and when.
- Assembly hardware is reached only from inside the cage; tamperproof hardware is available
- Heavy 10 gauge wire woven in a 2 in. x 1 in. rectangular mesh, welded inside a 1-3/4 in. x 1-3/4 in. x 1/8 in. steel angle frame
- Standard 3/8 in. mounting hardware; heavy-duty options available
- Panels can be ordered with any mesh, expanded metal, sheet metal or clear polycarbonate
Compare lock types on security cage locks and access control. Agencies storing controlled substances should also read DEA drug storage cages.
Product photos courtesy of Wire Crafters, the Louisville, Kentucky manufacturer; MH-USA is an authorized Wire Crafters dealer.
Where cages fit in an evidence room
Some common panel sizes are in stock at select manufacturers, subject to confirmation. Budget ranges are in the security cage cost guide.
Evidence Cage FAQs
What is an evidence cage?
How big can an evidence cage be?
Can an evidence cage have card access?
Does wire mesh block sprinklers in an evidence room?
Is an evidence cage the same as an evidence locker?
Can we buy a small evidence cage online?
Planning an evidence cage?
Send a sketch of the property room and what needs extra control. We will lay out the cage, doors and access control and quote it, supplied and installed nationwide.
